Rotary Lobe Liquid Transfer Pumps | Optilobe Series

Stainless Steel Pump

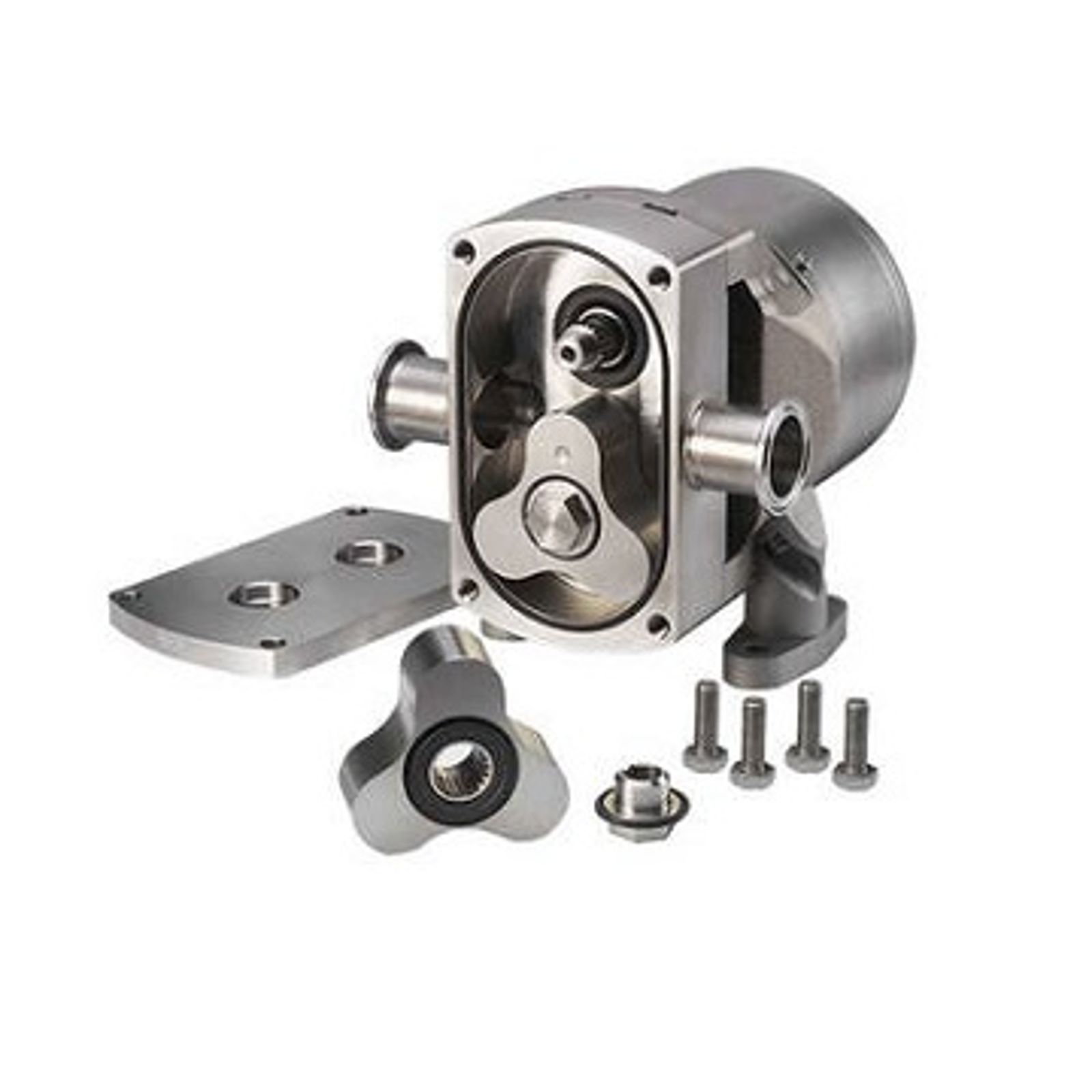

All metallic pumped components are manufactured in 316L stainless steel for maximum durability. The Optilobe serie standard specification has tri-lobe rotors allowing the pump to be operated at a maximum temperature of 130˚C for both process and CIP (Cleaning in Place).

Corrosion Resistant Finish

A stainless steel gear canister and bearing housing provide a clean, corrosion resistant external finish, making the pump suitable for the handling and delivery of sensitive products.

Gearbox Design

The Optilobe Series pump has a flexible gearbox design which gives the option of mounting pumps with the ports in either a vertical or horizontal plane by simply changing the foot position..

High Strength Shafts

High strength duplex stainless steel pump shafts provide a long life.

Hygienic Design

Optilobe Series fluid transfer pumps are EHEDG accredited and conform to the USA 3A Sanitary Standard offering protection of your delicate liquid products. Plus, the non-contacting rotor design offers no product contamination.

High Volumetric Efficiency

The Optilobe Series pump offers high efficiency transfer of low, medium, and high viscosity pumped media. Through maintaining high accuracy and repeatability of part manufacture, we can maximise shaft rigidity and minimise the effects of thermal expansion within the gearbox, allowing for optimum pump head geometry to be achieved.

Low NPSH

High efficiency inlet and outlet ports meet International Standards and reduce pressure losses, lowering NPSH requirements.

Easy Maintenance

No rotor case shimming is required as shims are factory set located in the bearing housing, resulting in easier maintenance and optimised rotor interchangeability.

Flexible

All Optilobe Series transfer pumps are capable of bi-rotational flow without modification, offering flexible operation to suit your needs.

The Optilobe serie is available with 10 different pump head displacements based on five different gearbox modules to handle flow rates from 0,06 liter/rev up to 1,72 liter/rev and differential pressures up to 8 bar.

• Maximum Flow Rate: 77 m³/hr
• Differential Pressure: Up to 8 bar g
• Port Sizes: 40mm to 80mm
