WITTIG RFL102 | Gardner Denver Waste Vacuum Pumps

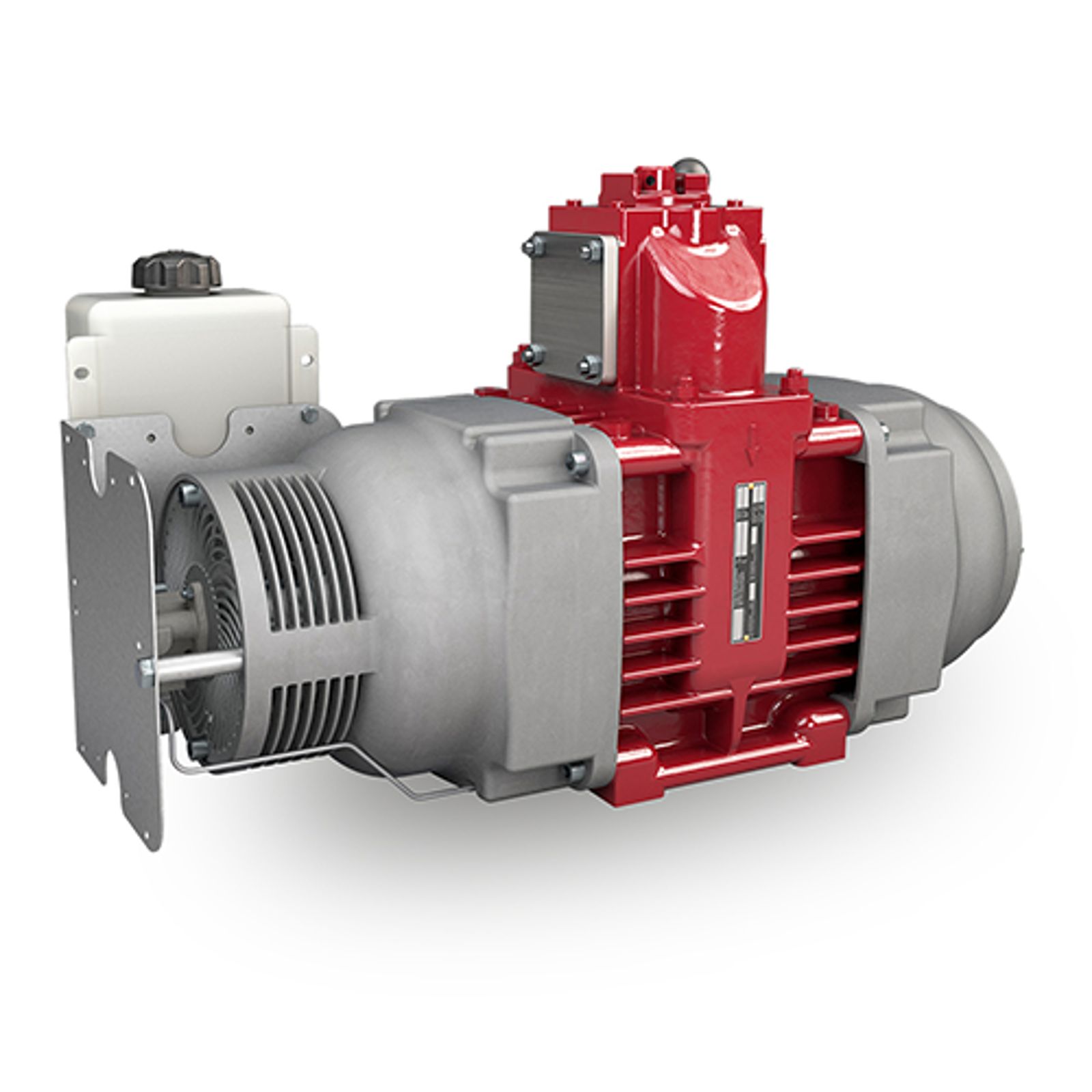

The WITTIG RFL 102 is a lightweight, air cooled waste vacuum pump designed for the collection and discharge of waste liquids from your vacuum and combined jetting/vacuum tankers. Highly efficient, the RFL 102 provides maximum flow rates at superior vacuum levels to shorten your loading times and reduce costs.

The newly designed RFL 102 offers the same advantages as its classic predecessor but its compact size is a break-through value proposition for mobile applications where space is limited.

Operating Pressure (bar)

-0.5 - 2

bar

Flow Capacity (m³/h)

0 - 700

m³/h

RFL102 Vacuum Pump Overview: Efficiency for Truck Vacuum Pumping

Experience efficiency in motion with the RFL102 Vacuum Pump Overview by Gardner Denver Transport. The WITTIG RFL 102, a lightweight, air-cooled waste vacuum pump, is tailored for the collection and discharge of waste liquids from your vacuum and jetting/vacuum tankers. Highly efficient, the RFL 102 ensures maximum flow rates and superior vacuum levels, reducing loading times and costs. Fleet owners, streamline your operations.

RFL102 Vacuum Pump Overview

To load this content, approve your cookie preferences and allow the required cookies.

Compact Installations

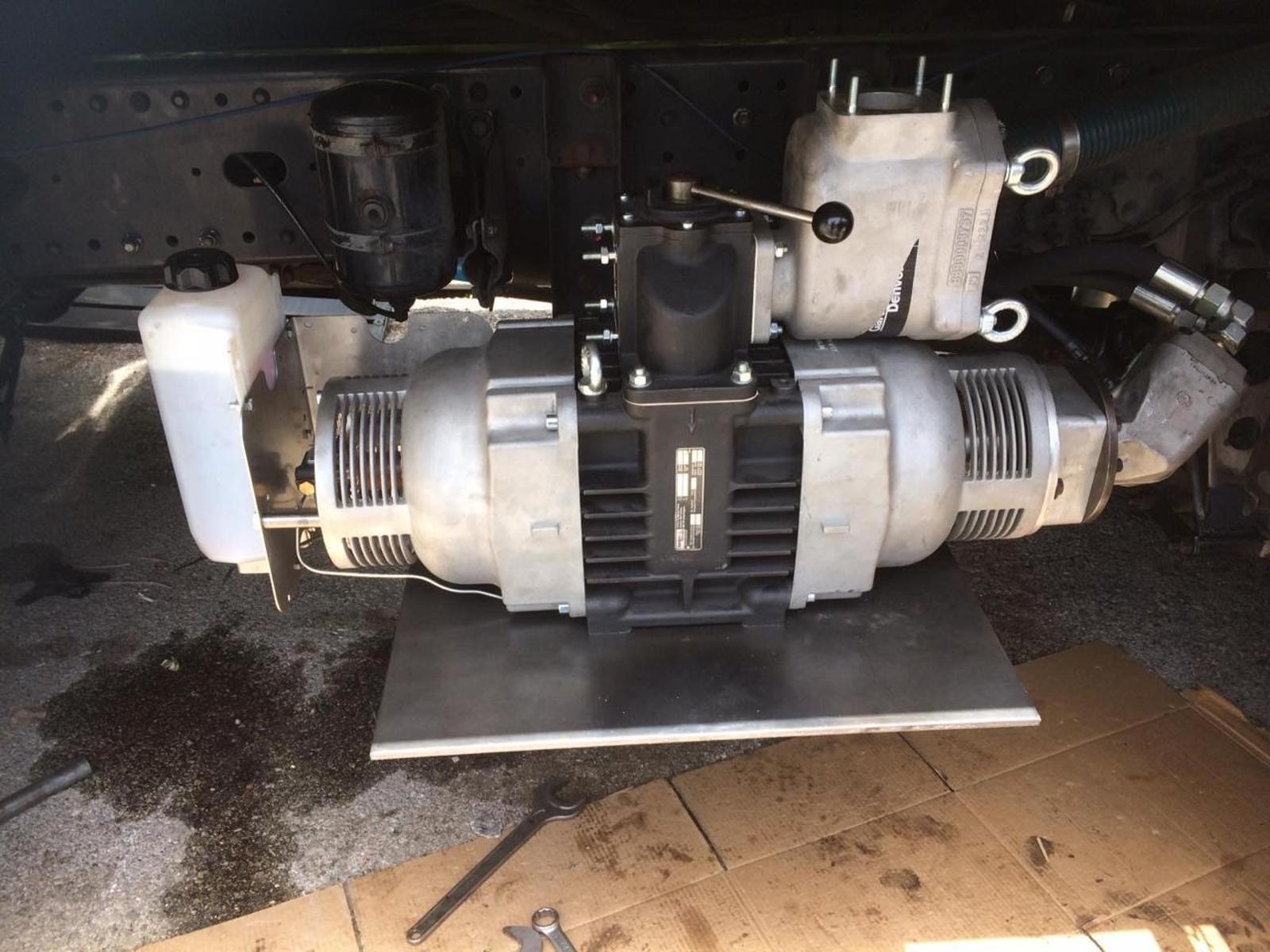

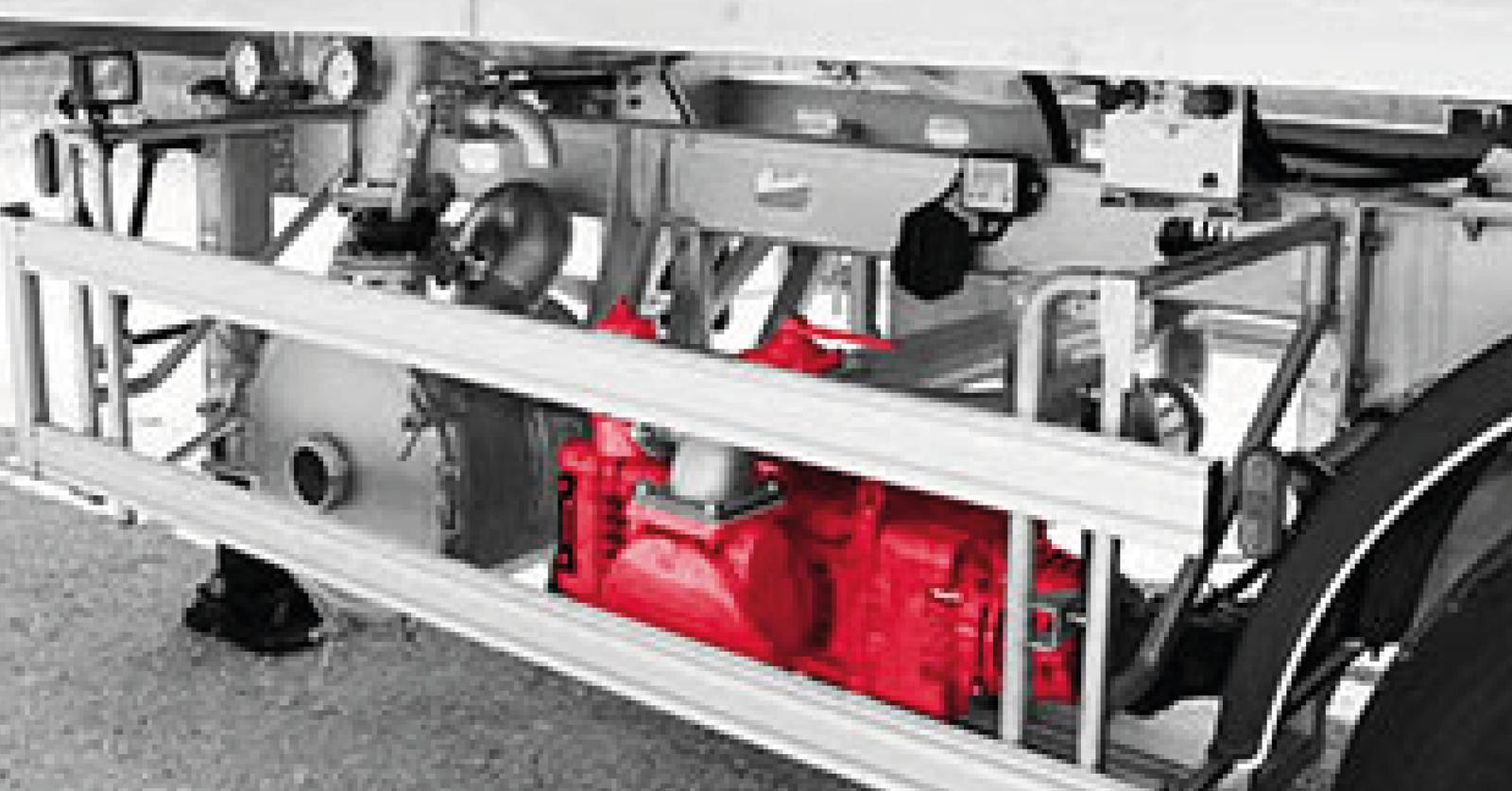

The RFL 102 is a lightweight machine which can increase the payload of your vehicle. Features such as the compact external oil tank, integral non-return valve along with the option to mount a Reverse Flow Valve and Suction Filter directly on to the pump gives a very compact and neat installation footprint.

Range of Ancillaries

The RFL 102 is available with a wide range of ancillary products which both compliment and complete the vacuum pump. These include a Reverse Flow Valve which can be mounted directly to the inlet and outlet ports on the pump. Our suction filter can also be mounted straight to the Reverse Flow Valve which overall provides a very compact installation.

Drive Flexibility

We can offer a range of hydraulic drive connection kits to suit the RFL 102, available in both ISO and SAE configurations. The RFL 102 can also be driven directly by PTO prop shaft and by electric motor or diesel engine making it suitable for all types of installation.

The Next Generation of RFL Vacuum Pumps

When discharging product, the material itself plays a key role in deciding your vacuum pump. The RFL 102 offers a reduced installation footprint whilst maintaining the high performance and efficiency of our legacy WITTIG product range. For the transfer of waste liquid product, the RFL 102 is the perfect choice of vacuum pump.

Maximum 700 m³/hr

RFL102 Flow at 2.0 bar
