Slimline Pack 5 module | SLP5

Discover our next generation solution for your compressed air needs with the Slimline Pack 5 module.

Your trusted and industry proven GD PACK 5 has been re-engineered to offer a reduced weight and smaller installation footprint, offering all of the same features and functions. This new compact version of our proven air aftercooler package, is designed to enable easier installation into increasingly limited spaces on crowded vehicle chassis rails and also offers significant weight savings to boost your earning capabilities.

Technical Documents

Key Specifications

Flow Capacity (m³/h)

625 - 1068

m³/h

Operating Pressure (bar)

2.2 - 2.5

bar

Weight (kg)

250 - 275

kg

Reduced Dimensions:

The Slimline Pack 5 Series offers a narrow profile with a width of just 450 mm, allowing for easier integration into a variety of vehicles, including 4x2 and 6x2 tractor units.

Lightweight Advantage:

Weighing 30 kg less than previous models, the Slimline Pack 5 increases your payload earning capability and fuel efficiency improvements.

Enhanced Cooling Efficiency:

Operating at a cooler 70 degrees Celsius ensures product stability during discharge, without degradation.

Driver-Friendly Design:

Front-facing gauges and discharge ports provide both operational convenience and installation flexibility.

Adaptability for Modern Vehicles:

The Slimline Pack 5’s reduced depth enables installation onto most modern vehicles even when installed with side skirts.

Slimline Pack 5: The Next-Gen Compressed Air Solution for Vehicles

Discover the innovative Slimline Pack 5 (SLP5) by Gardner Denver Transport– your ultimate solution for compact, efficient compressed air on the go. Engineered for performance, safety, and compliance, the SLP5 offers a modular design for easy installation, robust construction, and lightweight advantage.

SLP5-video

To load this content, approve your cookie preferences and allow the required cookies.

Discover how a lighter, more compact compressor installation can help improve payload capacity and reduce transportation costs. Use our calculator to estimate the potential savings for your operation in just a few clicks.

Get your instant estimate in less than 2 minutes

Third-party content

To load this content, approve your cookie preferences and allow the required cookies.

Applications

The Slimline Pack 5 Module is engineered considering challenging operating environments from dusty construction sites with uneven roads, through to food processing factories where sound, air purity and air cleanliness is paramount. Rely on us for a superior all round product helping you deliver product and good service to your customers.

dry bulk.png

Dry Bulk

Our range of dry bulk blowers and compressors are designed to discharge your bulk materials at optimum rates in the safest way possible.

Industries

The Slimline Pack 5 module is designed to support demanding bulk transport operations across a range of industries, including:

Its compact footprint, lightweight design, and reliable compressed air performance make it an ideal solution for operators working in space-constrained vehicle installations while maintaining efficient product discharge

Modular Design:

Each Slimline Pack 5 model includes a bare compressor (XK12, XK18 or TR20), a module pack, and a mounting kit, providing a full and comprehensive package for ease of installation. The design is suitable for all PTO directions of rotation.

Safety and Compliance:

We prioritize your safety with features like a high-temperature fault indicator, audio and visual alarms, and safety relief valves set to industry standards (XK18 & TR20 at 2.2 bar(g), XK12 at 2.5 bar(g)).

Robust Construction:

The powder-coated mounting frame provides a strong robust installation of compressor to chassis rail along with a high level of resilience against corrosion. The new GRP moulded cover, in the familiar GD Transport Red protects the internal components from the environment and harsh road conditions, yet delivers a pleasing sightline on your truck. The automatic fan control, radiator and 24v electric motor, are all configured to withstand demanding conditions typically seen in these hard operating conditions.

SlimLine Pack 5

To load this content, approve your cookie preferences and allow the required cookies.

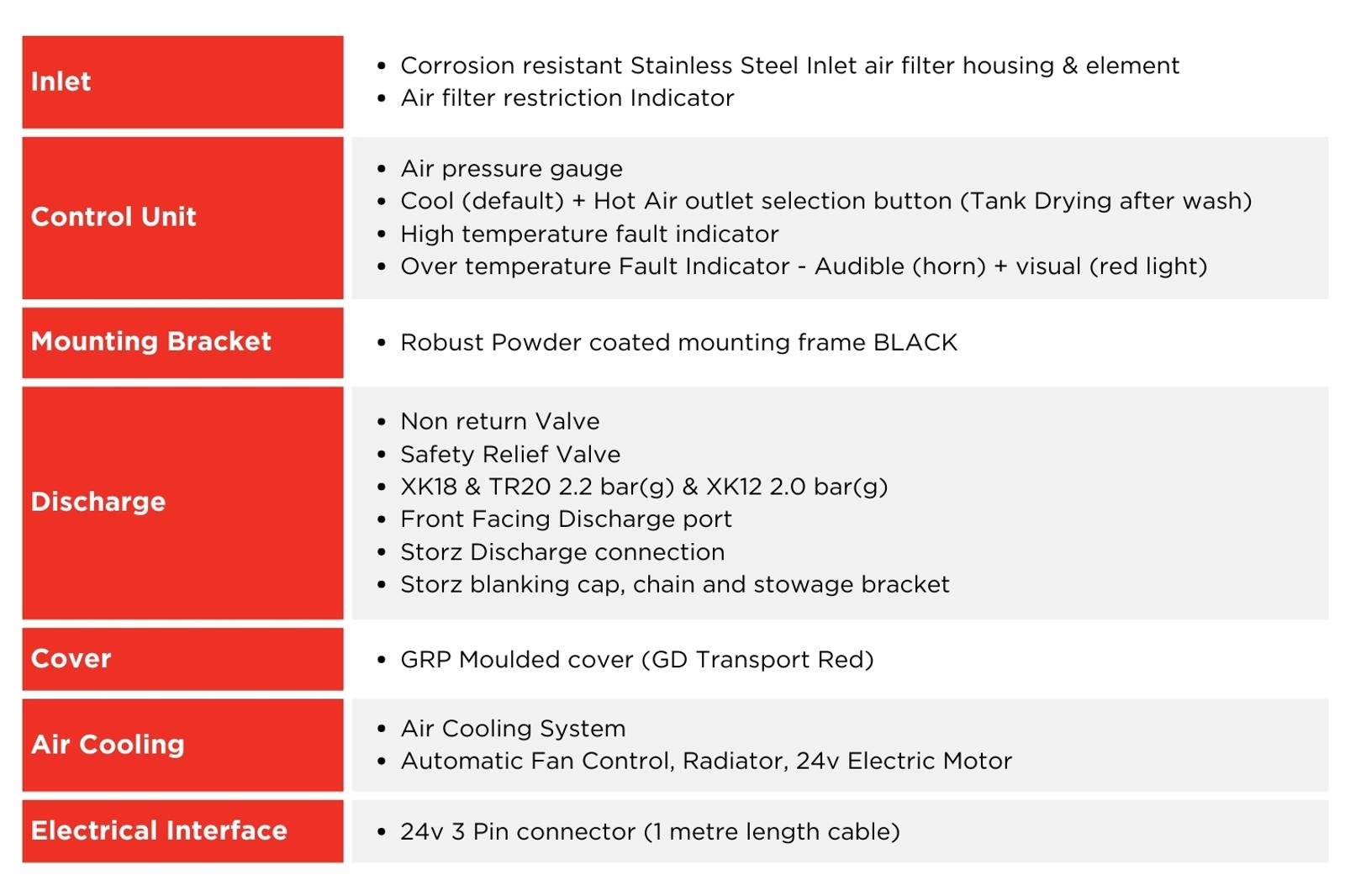

Inlet

  • Corrosion resistant Stainless Steel inlet air filter housing & element
  • Air filter restriction indicator

Control Unit

  • Air pressure gauge
  • Cool (default) + Hot air outlet selection button (Tank drying after wash)
  • High temperature fault indicator
  • Over temperature fault indicator – audible (horn) + visual (red light)

Mounting Bracket

  • Robust powder coated mounting frame – BLACK

Discharge

  • Non‑return valve
  • Safety relief valve
  • XK18 & TR20 2.2 bar(g) & XK12 2.0 bar(g)
  • Front facing discharge port
  • Storz discharge connection
  • Storz blanking cap, chain and stowage bracket

Cover

  • GRP moulded cover (GD Transport Red)

Air Cooling

  • Air cooling system
  • Automatic fan control, radiator, 24v electric motor

Electrical Interface

  • 24v 3‑pin connector (1 metre length cable)

SLIMLINE Pack 5

Proven technology in a new reduced footprint, lower weight

  • GD Oil Free Screw Compressor XK12, XK18 or TR20
  • Compressor specific Mounting Kit
  • Slimline Pack5 Module Featuring

Models

Slimline Pack 5 Version

Flow Capacity

Operating Pressure

Weight

Pack 5 + XK12

Up to 625 m³/h

Up to 2.5 bar(g)

250 kg*

Pack 5 + XK18

Up to 1,068 m³/h

Up to 2.2 bar(g)

260 kg*

Pack 5 + TR20

Up to 1,060 m³/h

Up to 2.2 bar(g)

275 kg*

Standard ancillaries included in Pack 5

  • Air cooler package with automatic fan control
  • Radiator and 24V motor
  • Pressure gauge & control panel
  • High temperature alarms (visual + audible)
  • Stainless steel inlet filtration system
  • Non-return valve
  • Safety relief valve
  • Front discharge outlet with Storz connection
  • Powder-coated mounting frame
  • GRP protective cover
  • Optional top outlet kit
  • Optional remote air inlet kit



Additional Options:

  • Top Vertical Outlet Kit: Offers a top outlet discharge connection for specific requirements.
  • Remote Air Inlet Kit: Allows for remote air intake, providing additional flexibility in installation.



Keep your truck-mounted compressor cooling package performing at its best with lifecycle-focused aftermarket support. Our protection agreements combine genuine parts, scheduled maintenance, and proactive health checks tailored to Slimline Pack 5 to help reduce unplanned downtime and extend equipment life. Choose the level of coverage that best fits your operation, from fixed-price parts supply to scheduled servicing and comprehensive support packages with on-site assistance, so you can control maintenance costs with confidence and keep your fleet running efficiently.
  • Genuine GD parts and SLP5 service kits (XK12 / XK18 / TR20)
  • Fixed-price parts for predictable budgeting
  • Scheduled maintenance by trained technicians
  • Proactive checks on automatic fan control, radiator and temperature indicators
  • Flexible coverage levels aligned to your fleet strategy
  • Optional on-site support and overhauls
Check Out Our Agreements

Flyers

Download the Pack5 flyer

789 KB, PDF
Download

Download de Pack5-brochure

794 KB, PDF
Download

Pack5-Prospekt herunterladen

794 KB, PDF
Download

Télécharger la brochure Pack5

795 KB, PDF
Download

Descargar el folleto de Pack5

794 KB, PDF
Download

Scarica la brochure Pack5

793 KB, PDF
Download



Technical Documentation

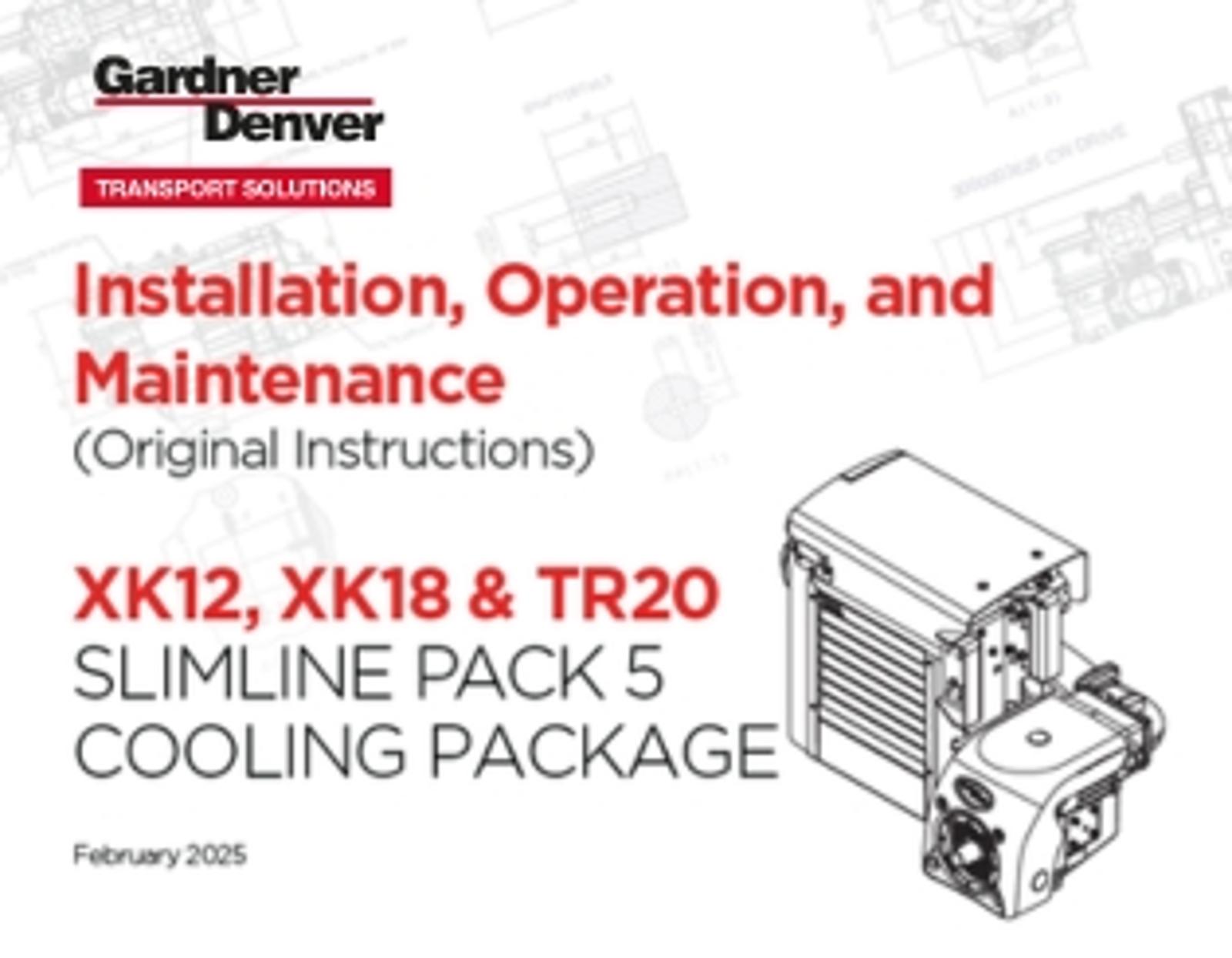

pack5 cover en.jpg

Essential Guide for Your Cooling Package

Access installation, operation, and maintenance instructions for XK12, XK18 & TR20 SLIMLINE PACK 5. Ensure optimal performance and reliability.
GDT - dry and liquid bulk service kits.jpg

Gardner Denver Dry & Liquid Bulk System Service Kits

Download the brochure to learn about Gardner Denver’s service kits for dry and liquid bulk systems. Includes genuine parts and solutions for discontinued models.
