Efficient, compact solutions for electric and hybrid vehicles.Gardner Denver Transport Solutions’ TV Series offers two rotary vane compressor packages—TV01 and TV04—engineered for transit and industrial vehicles with varying air demands. These electric compressors are designed for seamless integration, quiet operation, and reliable performance across a wide range of applications.
Connect and go your vehicles with the new TV01 Compact electric air compressor package from Gardner Denver Transport Solutions. The TV01 Compact is robust, lightweight, and highly efficient. The TV01 Compact is designed around today’s needs for sustainable clean transport.
Gardner Denver’s electric compressors are designed to be effective for use in electrified drive systems. Efficiency therefore depends on the interface between on-board technology and the vehicle’s electronics. We offer a range of different drive configurations to support this interface and achieve the best possible performance.
The TV Series has been developed to provide high-quality compressed air across a range of different applications, ranging from 10-12m trucks and buses all the way up to 18m trolleybuses and metro systems. However, these products are also capable of providing where this is a high air and duty demand, such as HGVs, trolleybuses, metro systems and large articulated city buses that are often stopping and starting.
Like other Gardner Denver products, this range has been designed to easily integrate into a vehicle’s chassis. Our compressor packages aim to keep size and weight to a minimum – this ensures that fitting is straight forward and any disruption to service is limited.
The TV Series can also be retrofitted for customers using a legacy ROL compressor.
The TV Series is versatile and able to accommodate different challenges in the field. The TV01, for example, can provide air for breaking, suspension and door systems in small city buses and trucks. While the TV04 is best suited to heavy duty applications like those found on trams and light rail networks.
.jpeg?format=pjpeg&width=1600&quality=75&auto=webp)

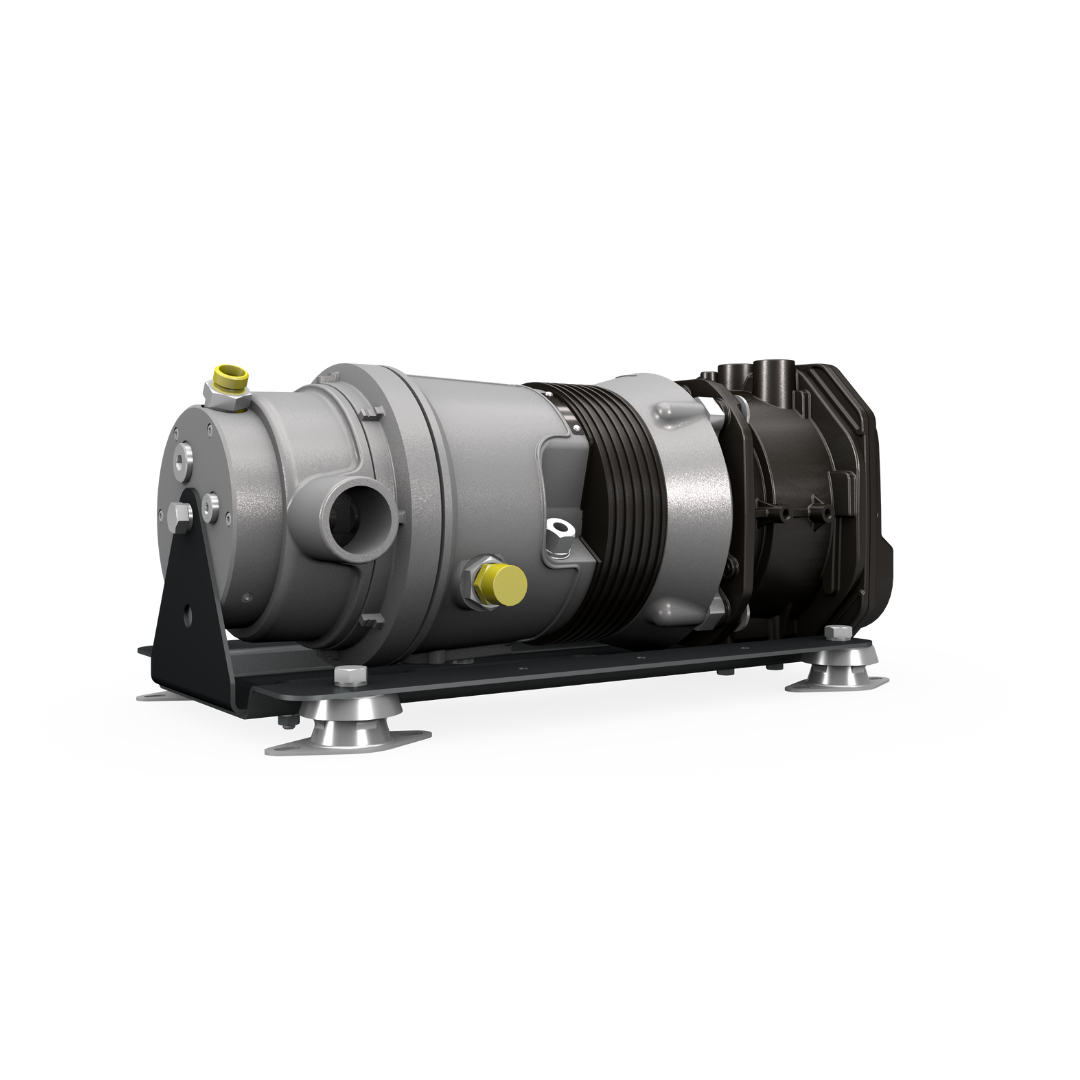

The TV01 Compact is the smallest and most space‑efficient compressor in the TV Series, designed for vehicles with low air demand and tight installation constraints. It delivers reliable rotary vane performance in a lightweight, easy‑to‑integrate package ideal for compact electric buses and light‑duty applications.

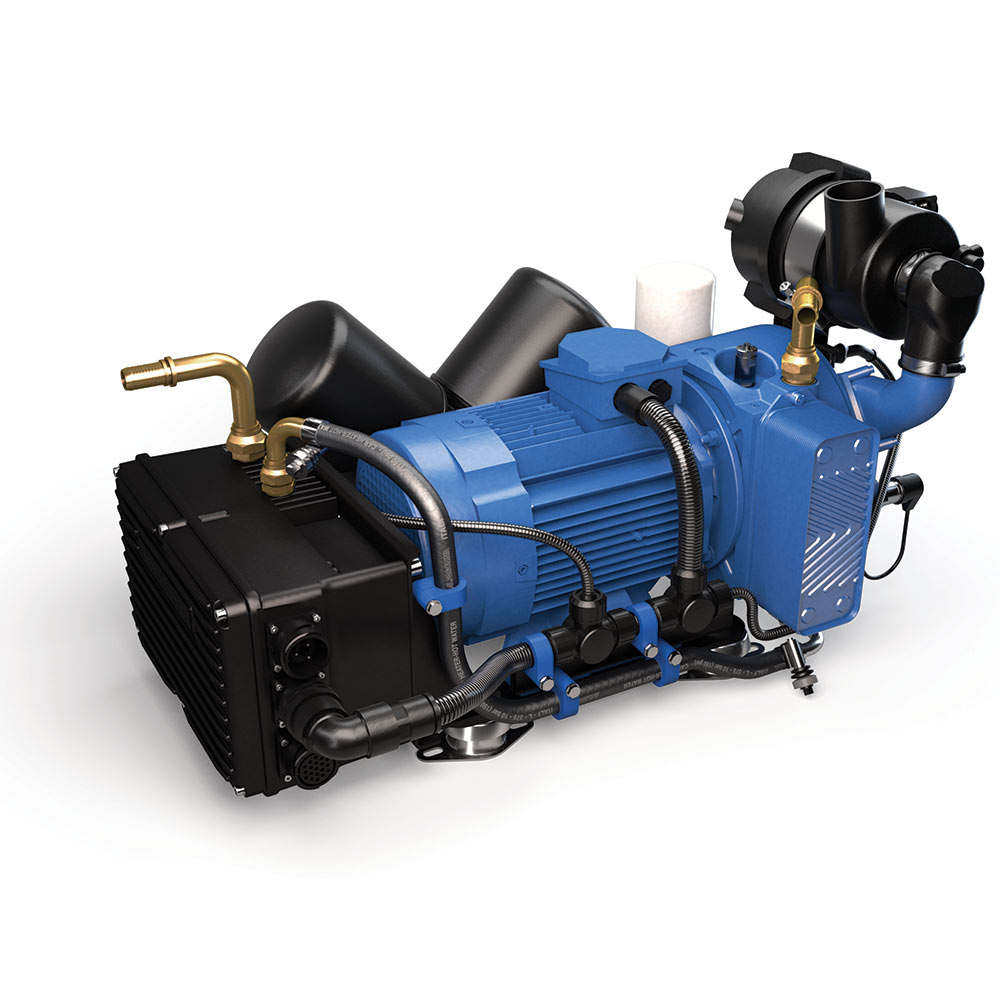

The TV01 offers a balanced combination of compact size and increased airflow, making it a flexible solution for a wide range of electric and hybrid vehicles. It supports essential pneumatic systems such as braking, suspension, and doors, providing dependable performance for medium‑duty transit fleets.

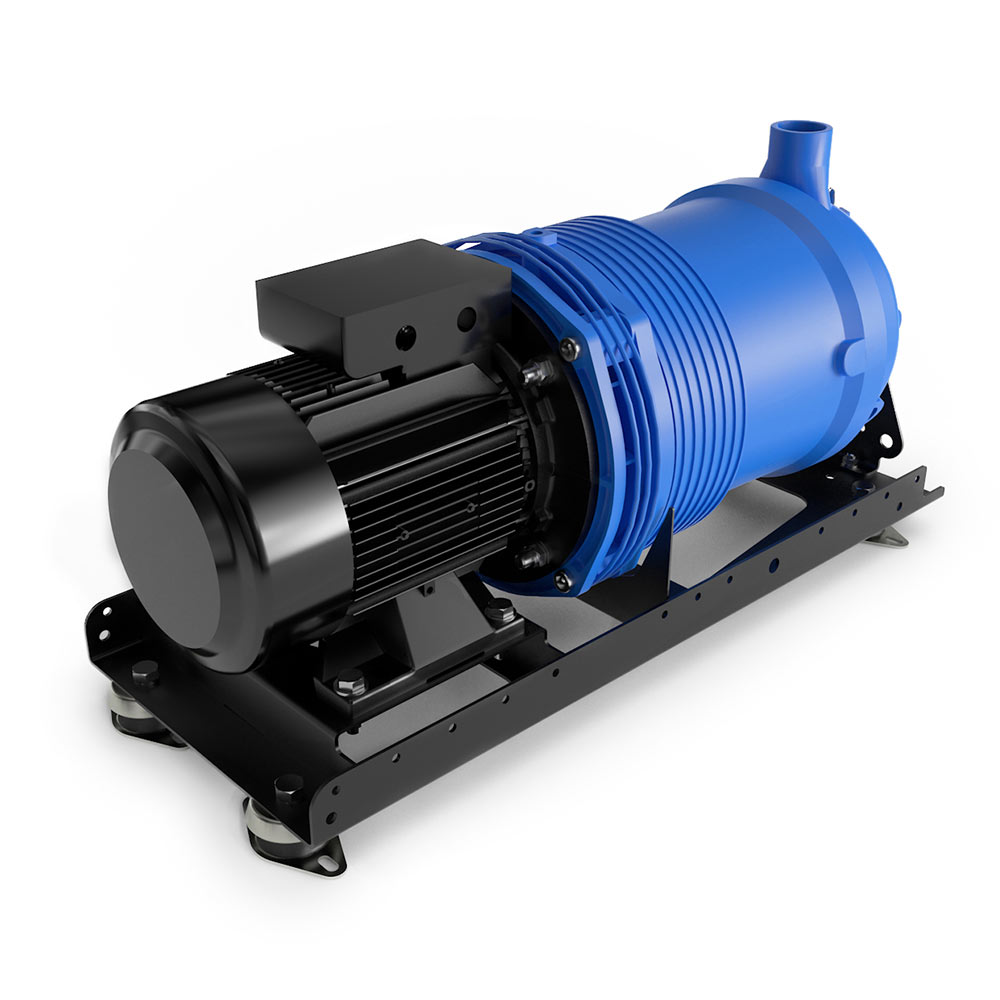

The TV04 is the high‑capacity model of the series, engineered for vehicles with significant air consumption and demanding duty cycles. Its robust output makes it ideal for large buses, trolleybuses, and rail applications where consistent, high‑volume air delivery is essential.
The TV Series from Gardner Denver delivers reliable, efficient rotary vane compressor solutions for electric and hybrid vehicles. Designed for seamless integration and quiet operation, the range includes three models—TV01 Compact, TV01, and TV04—each tailored to different air demand requirements across transit, truck, and rail applications.
Compressor | Flow range | Pressure range | Final oil content | Noise level | Ambient temperature range | DC voltage options |
|---|---|---|---|---|---|---|
TV01 Electric Compressor | 90 – 260 l/min | 7 – 12 bar(g) | ≤5.0 mg/m³* | ≤71 dB(A) at 1.0m | -20°C to 50°C | - |
TV04 Electric Compressor | 320 – 660 l/min | 7 – 12 bar(g) | ≤3.6 mg/m³* | ≤71 dB(A) at 1.0m | -20°C to 50°C | - |
TV01 Compact Electric Compressor | 90 – 260 l/min | 7 – 12 bar(g) | - | ≤71 dB(A) at 1.0m | -20°C to 50°C | 600V (500–820V) standard, 400V (150–470V) optional |
Our team can help you select the optimal TV compressor for your vehicle platform or application. Contact us for technical guidance, integration support, or custom configurations.
